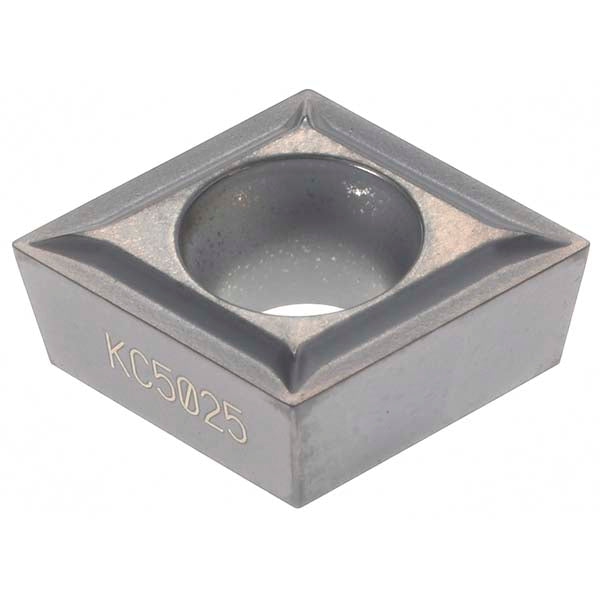

C - Diamond (Rhombic) 80-Deg 3/8" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 2425662

Kennametal

C - Diamond (Rhombic) 80-Deg 3/8" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 2425662

MFR# 2425662ISO/ANSI# CCMT09T302Series Screw-On

$29.73List $36.29 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKC5025
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 2425662 is a carbide indexable insert, grade KC5025, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi insert codeCCMT32505
Ansi size code32505
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.1732
Included angle80
Industry standard numberCCMT32505LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32505
Insert styleCCMT
Insert thickness in5/32
Iso insert codeCCMT09T302
Iso size code09T302
Length range0.3000 - 0.4000
Manufacturers catalog number2425662
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
