Kennametal

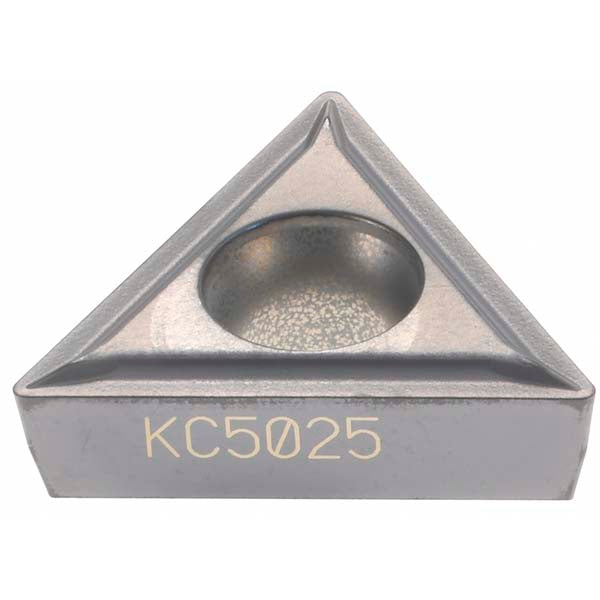

T - Triangle 3/8" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 2425806
MFR# 2425806ISO/ANSI# TCMT16T304Series Screw-On
$34.08List $41.60
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 2425806 is a carbide indexable insert, grade KC5025, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeTCMT3251
Ansi size code3251
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.1732
Included angle60
Industry standard numberTCMT3251LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6495
Insert materialCarbide
Insert shapeT - Triangle
Insert size code3251
Insert styleTCMT
Insert thickness in5/32
Iso insert codeTCMT16T304
Iso size code16T304
Length range0.6000 - 0.6500
Manufacturers catalog number2425806
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.6495
Wiper edgeNo
