Kennametal

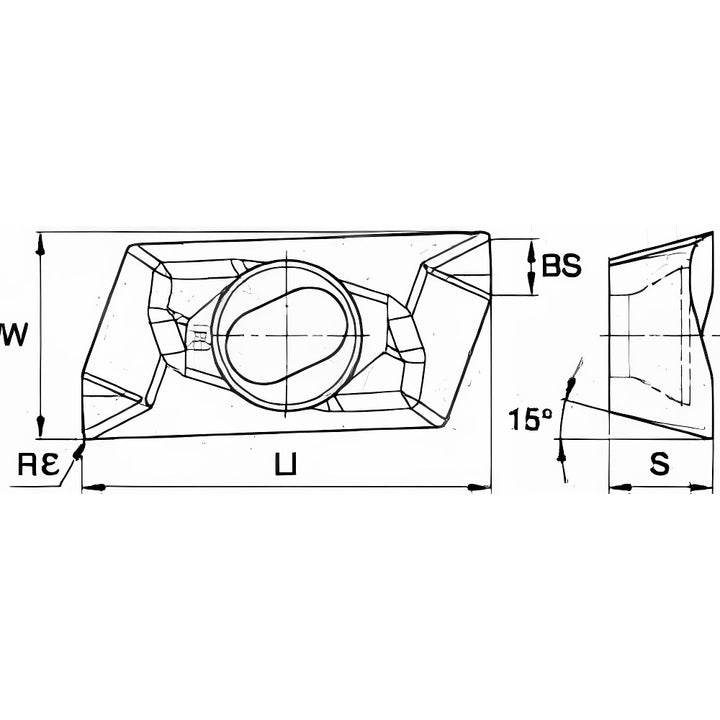

EDCT180548PDFRLDJ Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 2451684
MFR# 2451684ISO/ANSI# EDCT180548PDFRLDJCat# EDCT180548PDFRLDJSeries EDCT
$38.16List $45.77
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC410M
MaterialSolid Carbide
CoatingTiB2
Description
The Kennametal 2451684 is a EDCT180548PDFRLDJ solid carbide indexable insert, grade KC410M, TiB2 coated. Suited for non-ferrous metal.
Specifications
Ansi codeEC1848FJ
Chip breakerLD
Coating finishTiB2
Coating processPVD
Corner radius0.1890
Cutter series compatibilityMill 1-18
Cutting edge styleSharp
Included angle degree70
Inscribed circle0.4262
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1848
Insert styleEDCT
Iso codeEDCT180548PDFRLDJ
Length0.7939
Length range0.7000 to 0.9000
Manufacturers catalog numberEDCT180548PDFRLDJ
Manufacturer gradeKC410M
Material applicationNon-Ferrous Metal
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2165
Thickness range0.2000 to 0.2200
Width0.4264
