Kennametal

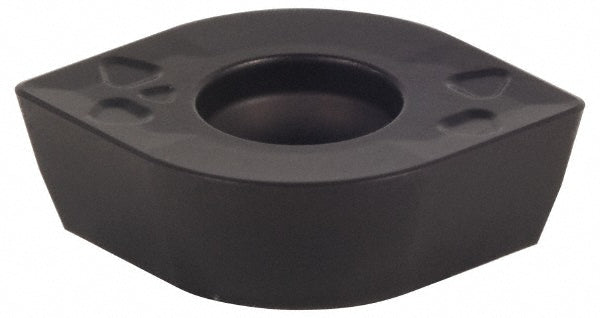

SDET120416SNGB2 Solid Carbide Insert, Grade KCK15, TiN - Kennametal 2458916
MFR# 2458916ISO/ANSI# SDET120416SNGB2Cat# SDET120416SNGB2Series SDET
$37.05List $44.44
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKCK15
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 2458916 is a SDET120416SNGB2 solid carbide indexable insert, grade KCK15, TiN coated. Suited for cast iron.
Specifications
Chip breakerGB2
Coating finishTiN
Coating processCVD
Corner radius in1/16
Hole diameter0.1732
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size43
Insert size code434
Insert styleSDET
Iso codeSDET120416SNGB2
Manufacturers catalog numberSDET120416SNGB2
Manufacturer gradeKCK15
Material applicationCast Iron
Material gradeC1
Primary workpiece materialCast Iron
Relief angle15.00
Thickness in3/16
Thickness range0.1850 to 0.2000
