Kennametal

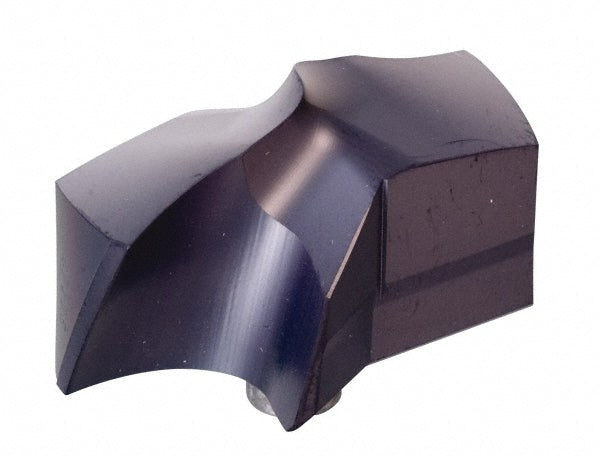

Carbide Insert, Grade KC7315, TiAlN - Kennametal 2499891
MFR# 2499891Series KSEM
$359.58List $431.28
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKC7315
CoatingTiAlN
Description
The Kennametal 2499891 is a carbide indexable insert, grade KC7315, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter1.5142
DrillingStackedPlates
Drill point angle140
Flute length (mm)19.00
Flute typeHelical
Functional length0.7570
Height (mm)26.00
Included angle degree140
Insert geometryHPG
Insert holding methodClamp
Insert seat size10
Iso numberKSEM1514HPG
Manufacturer gradeKC7315
Material gradeFine Grain
Number of flutes2
Overall length projection1.0230
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Spiral typeRegular Spiral
StyleKSEM
ThroughcoolantMQL(MinimumQuantityLubricant):Drilling; Drilling-ThroughCoolant
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
