Kennametal

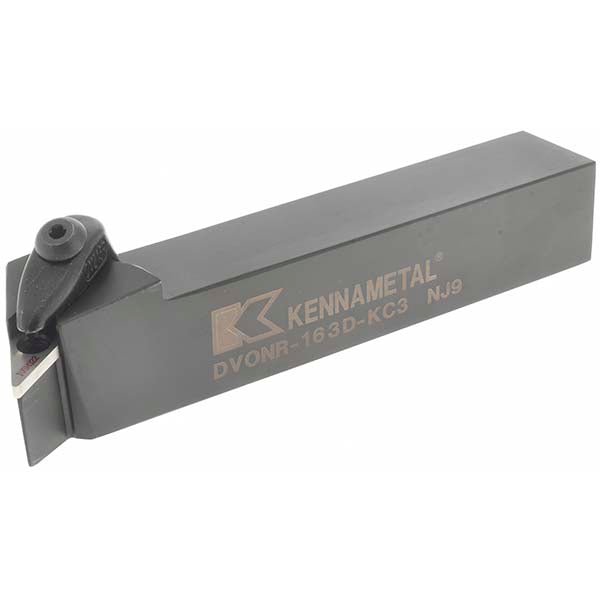

Indexable Turning & Profiling - Kennametal 2504008
MFR# 2504008Cat# DVONR; L163DKC3Series Kenclamp
$162.83List $198.76
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 2504008 indexable turning & profiling. Series Kenclamp.
Specifications
Back of bar to cutting edge1.2500
Complete insert compatibilityVN.. 332
Coolant throughNo
Hand of holderRight Hand
Head length1.4700
Insert compatibilityVN..33.
Insert holding methodClamp
Insert inscribed circle in3/8
Manufacturers catalog numberDVONR; L163DKC3
Multi use toolNo
Overall length in6
RakeNegative
Rake angle-6.4
Shank height in1
Shank width in1
Toolholder materialSteel
Toolholder styleDVON
