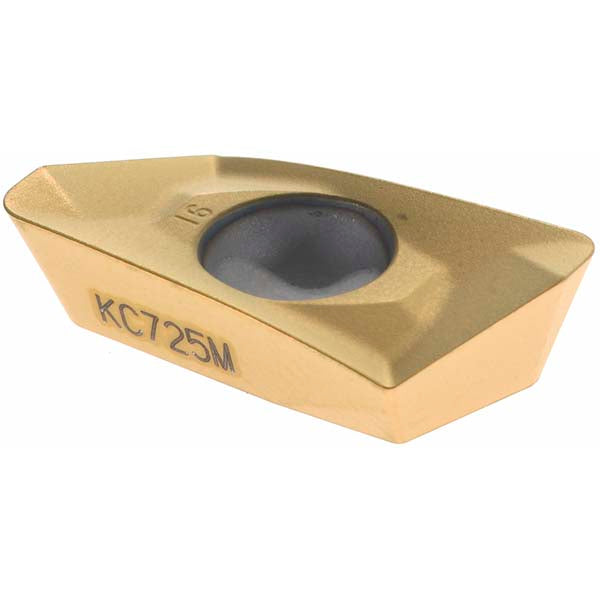

EDPT180516PDSRGD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 2509387

Kennametal

EDPT180516PDSRGD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 2509387

MFR# 2509387ISO/ANSI# EDPT180516PDSRGDCat# EDPT180516PDSRGDSeries EDPT

$32.26List $38.69 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 2509387 is a EDPT180516PDSRGD solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeEP1816S
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutter series compatibilityMill 1-18
Cutting edge styleChamfered; Honed
Included angle degree70
Inscribed circle0.4290
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1816
Insert styleEDPT
Iso codeEDPT180516PDSRGD
Length0.8580
Length range0.7000 to 0.9000
Manufacturers catalog numberEDPT180516PDSRGD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2170
Thickness range0.2000 to 0.2200
Width0.4280
