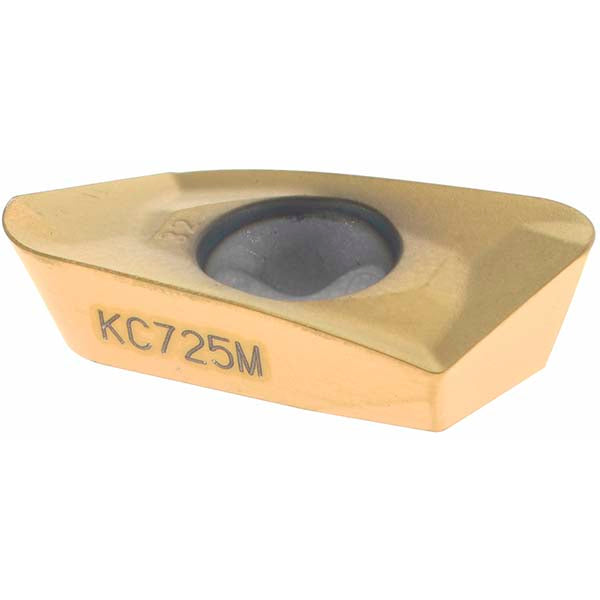

EDPT180532PDSRGD Solid Carbide Insert, Grade KC725M, TiN - Kennametal 2509408

Kennametal

EDPT180532PDSRGD Solid Carbide Insert, Grade KC725M, TiN - Kennametal 2509408

MFR# 2509408ISO/ANSI# EDPT180532PDSRGDCat# EDPT180532PDSRGDSeries EDPT

$32.26List $38.69 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 2509408 is a EDPT180532PDSRGD solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerGD
Coating finishTiN
Coating processPVD
Corner radius in1/8
Included angle degree70
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1832
Insert styleEDPT
Iso codeEDPT180532PDSRGD
Length0.8579
Length range0.7000 to 0.9000
Manufacturers catalog numberEDPT180532PDSRGD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Relief angle15.00
Thickness0.2170
Thickness range0.2000 to 0.2200
Width0.4260
