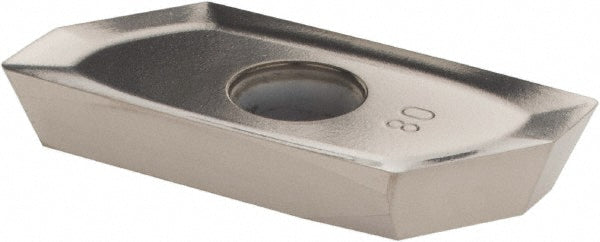

KEGT25L508PEERLDJ Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 2526385

Kennametal

KEGT25L508PEERLDJ Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 2526385

MFR# 2526385ISO/ANSI# KEGT25L508PEERLDJCat# KEGT25L508PEERLDJSeries KG

$74.81List $89.73 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeKC410M
MaterialSolid Carbide
CoatingTiB2

Description

The Kennametal 2526385 is a KEGT25L508PEERLDJ solid carbide indexable insert, grade KC410M, TiB2 coated. Suited for non-ferrous metal.

Specifications

Coating finishTiB2
Coating processPVD
Corner radius in1/32
Inscribed circle0.4450
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size25
Insert size code2508
Insert styleKG
Iso codeKEGT25L508PEERLDJ
Length1.2390
Length range1.0000+
Manufacturers catalog numberKEGT25L508PEERLDJ
Manufacturer gradeKC410M
Material applicationNon-Ferrous Metal
Primary workpiece materialNon-Ferrous Metal
Single or double sided insertSingle
Thickness0.2050
Thickness range0.2000 to 0.2200
Width0.5750
