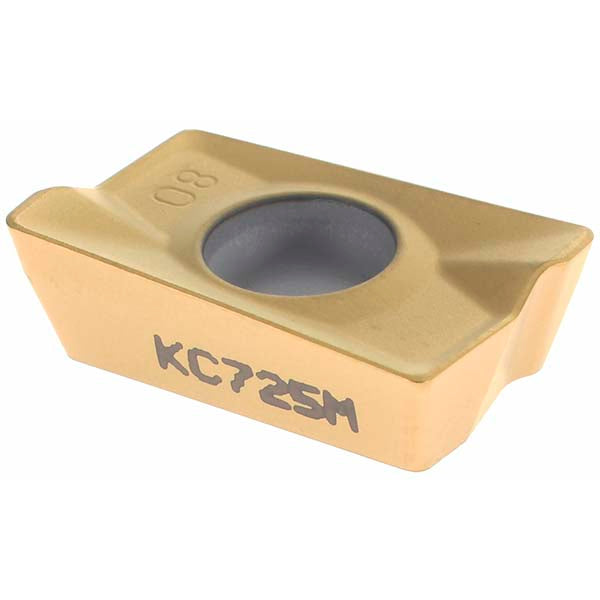

APPT1604PDSRGD Solid Carbide Insert, Grade KC725M, TiN - Kennametal 2527938

Kennametal

APPT1604PDSRGD Solid Carbide Insert, Grade KC725M, TiN - Kennametal 2527938

MFR# 2527938ISO/ANSI# APPT1604PDSRGDCat# APPT1604PDSRGDSeries APPT

$33.86List $40.60 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 2527938 is a APPT1604PDSRGD solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerGD
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle degree85
Inscribed circle in1/2
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1604
Insert styleAPPT
Iso codeAPPT1604PDSRGD
Length0.6787
Length range0.6500 to 0.7000
Manufacturers catalog numberAPPT1604PDSRGD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Rake angle15
Relief angle11.00
Thickness0.2071
Thickness range0.2000 to 0.2200
Width0.3713
