Kennametal

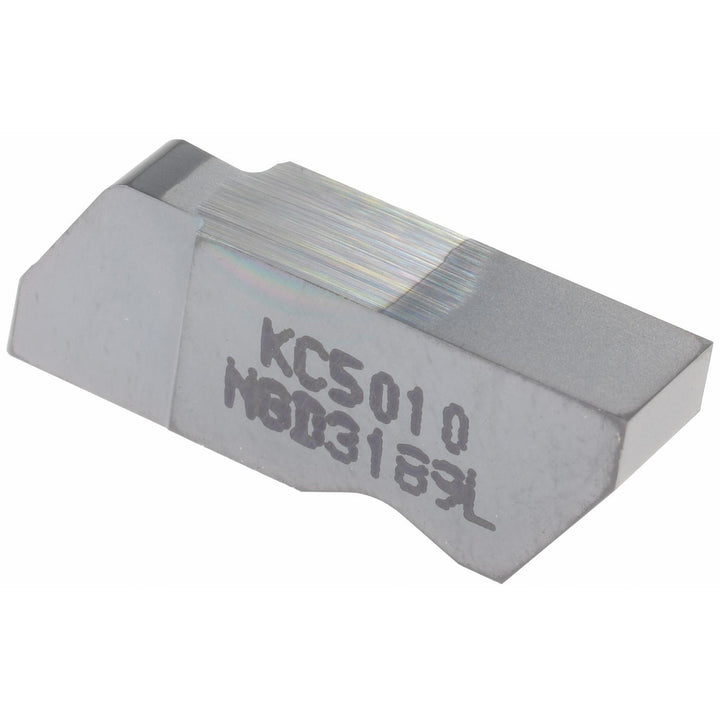

Carbide Insert, Grade KC5010, TiAlN - Kennametal 2598823
MFR# 2598823Series Top Notch
$32.34List $38.79
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 2598823 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0224
Cutting width0.1890
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert materialCarbide
Insert size3189
Insert styleNGD
Lead angle3
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Multi use toolNo
RakeNeutral
