Kennametal
Carbide Insert, Grade KC5010, TiAlN - Kennametal 2599498
MFR# 2599498Series Top Notch
$47.81List $58.36
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description

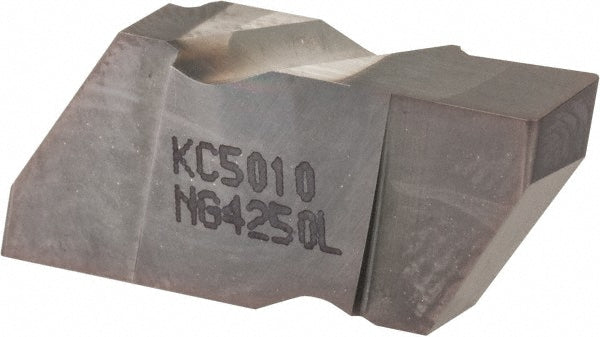

The Kennametal 2599498 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0225
Cutting width0.2500
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert materialCarbide
Insert seat size4
Insert size4250
Insert styleNG
Lead angle3
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Multi use toolNo
RakeNeutral
