Kennametal

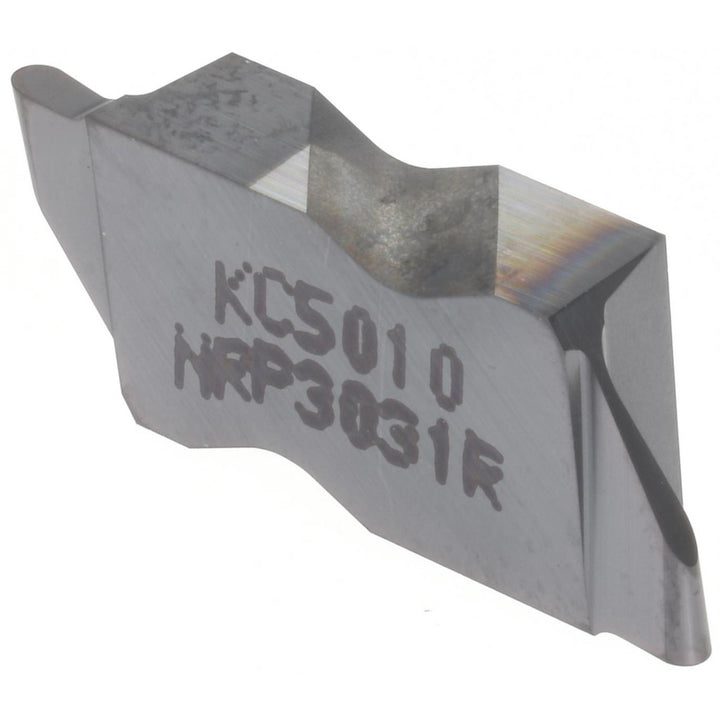

Carbide Insert, Grade KC5010, TiAlN - Kennametal 2599510
MFR# 2599510Series Top Notch
$45.46List $54.53
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 2599510 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0311
Cutting width0.0622
Full radiusYes
Included angle degree55
Insert handRight Hand
Insert height0.3440
Insert materialCarbide
Insert size3031
Insert styleNRP
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0941
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Msc manufacturer numberNRP3031R/L
Multi use toolNo
RakePositive
Rake angle5
