Kennametal

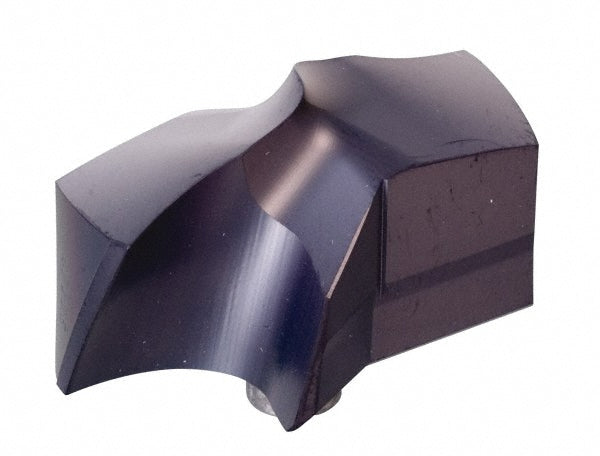

Carbide Insert, Grade KC7135, TiCN - Kennametal 2646097
MFR# 2646097Series KSEM
$216.54List $264.32
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKC7135
CoatingTiCN
Description
The Kennametal 2646097 is a carbide indexable insert, grade KC7135, TiCN coated. Suited for steel, cast iron.
Specifications
ApplicationsDrilling
Coating finishTiCN
Coating processPVD
Coolant throughNo
Cutting diameter1.0630
DrillingStackedPlates
Drill point angle140
Flute length (mm)13.00
Flute typeHelical
Functional length0.5315
Height (mm)17.00
Included angle degree140
Insert geometryPC
Insert holding methodClamp
Insert seat size6
Iso numberKSEM2700PCM
Manufacturer gradeKC7135
Material gradeP40; K35
Number of flutes2
Overall length projection0.6535
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Spiral typeRegular Spiral
StyleKSEM
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
