Kennametal

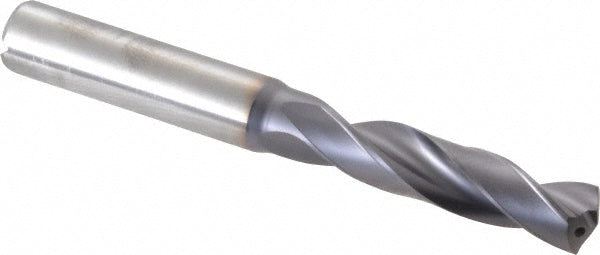

27/64" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 2649377
MFR# 2649377Series B976
$215.41List $276.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size27/64
Flutes2
CoatingTiAlN
Description
The Kennametal 2649377 is a 27/64" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for cast iron, steel. Series B976.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.007 to +0.025 mm
Drill bit gradeHigh Performance
Drill bit size in27/64
Drill bit size range0.4000 to 0.4500
Drill point angle140
Drill point length0.0720
Flute length2.1654
Flute typeRegular Spiral
Maximum drilling depth1.5750
Number of flutes2
Overall length4.0157
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.4724
Shank length1.7717
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
