Kennametal
5/8" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 2649383
MFR# 2649383Series B976
$373.04List $478.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/8
Flutes2
CoatingTiAlN
Description

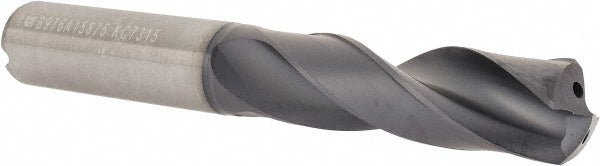

The Kennametal 2649383 is a 5/8" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for cast iron, steel. Series B976.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.007 to +0.025 mm
Drill bit gradeHigh Performance
Drill bit size in5/8
Drill bit size range0.6000+
Drill point angle140
Drill point length0.1080
Flute length2.5591
Flute typeRegular Spiral
Maximum drilling depth1.7720
Number of flutes2
Overall length4.5276
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.6299
Shank length1.8898
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
