Kennametal

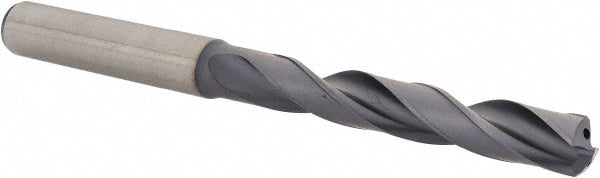

9/32" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 2658216
MFR# 2658216
$171.07List $219.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/32
CoatingTiAlN
Description
The Kennametal 2658216 is a 9/32" Solid Carbide drill bit with a TiAlN finish, 140° point.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.006 to +0.021 mm
Drill bit finish coatingTiAlN
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in9/32
Drill bit size range0.2500 - 0.3000
Drill point angle degrees140
Drill point length0.0470
Flute length2.0866
Flute typeSpiral
Maximum drilling depth1.6930
Overall length3.5827
Point typeStandard
Shank diameter0.3150
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
Web configurationParallel
Web thinningWeb-Thinned
