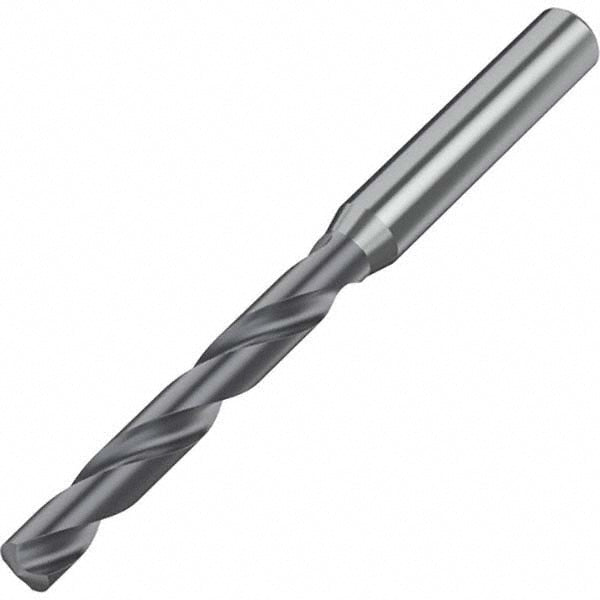

21/64" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 2658219

Kennametal

21/64" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 2658219

MFR# 2658219

$190.66List $244.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size21/64
CoatingTiAlN

Description

The Kennametal 2658219 is a 21/64" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.

Specifications

Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.006 to +0.021 mm
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in21/64
Drill bit size range0.3000 - 0.3500
Drill point angle degrees140
Drill point length0.0560
Flute length2.0866
Flute typeRegular Spiral
Maximum drilling depth1.9290
Overall length4.0551
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.3937
Shank length1.5748
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
Web configurationParallel
Web thinningWeb-Thinned
