Kennametal
13/32" Solid Carbide Drill Bit, TiAlN, 132° point - Kennametal 2658406
MFR# 2658406Series B978
$521.24List $656.88
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size13/32
CoatingTiAlN
Description

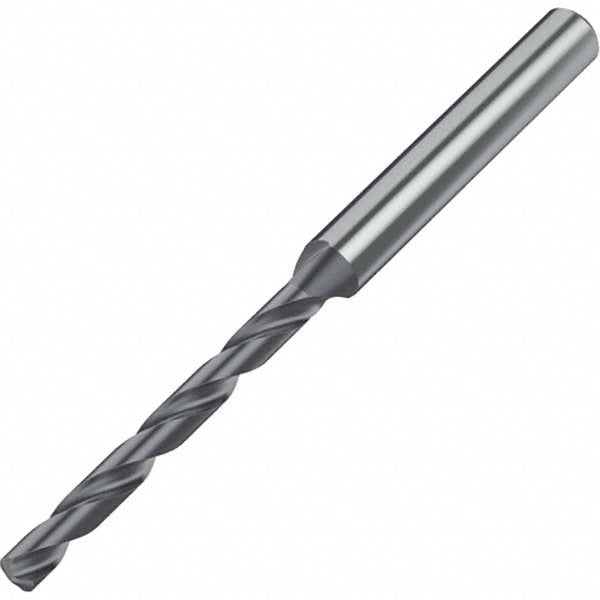

The Kennametal 2658406 is a 13/32" Solid Carbide drill bit with a TiAlN finish, 132° point. Series B978.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.007 to +0.025 mm
Drill bit gradeHigh Performance
Drill bit size in13/32
Drill point angle degrees132
Drill point length0.0860
Flute length3.7008
Flute typeSpiral
Material applicationCast Iron; Steel
Maximum drilling depth3.1100
Overall length5-2/4
Point typeStandard
Shank diameter0.4724
Shank length1.7717
Shank typeStraight-Cylindrical
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
