Kennametal

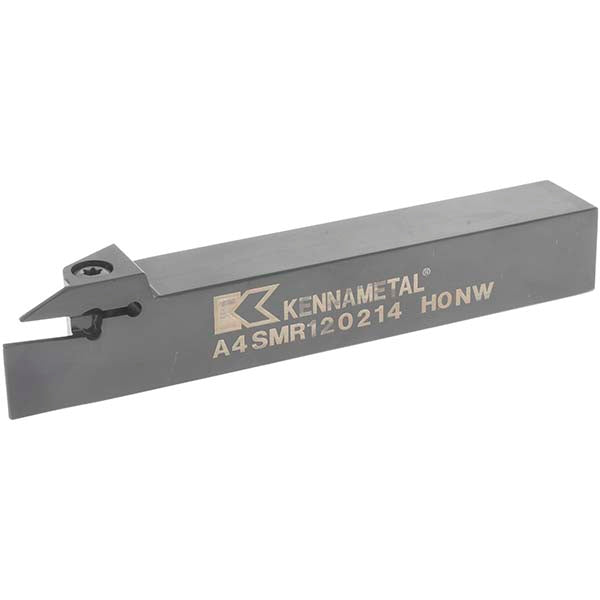

Indexable Grooving - Kennametal 2976496
MFR# 2976496Series A4
$182.78List $223.10
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 2976496 indexable grooving. Series A4.
Specifications
Coolant throughNo
Full radius insertNo
Hand of holderRight Hand
Head height0.9500
Head length1.1800
Insert compatibilityA4..02..
Insert holding methodClamp
Insert seat size2.0
Internal or externalExternal
Maximum depth of cut0.5500
Minimum groove width0.0790
Overall length (mm)127.00
Shank height in3/4
Shank length3.8189
Shank width diameter in3/4
Toolholder styleA4SM
