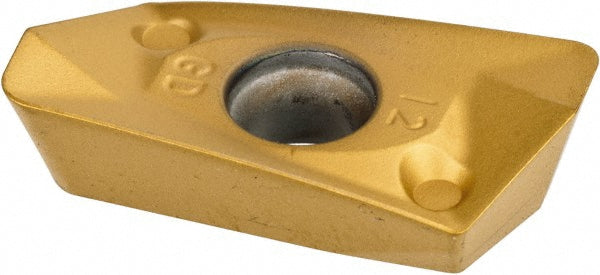

EDPT140412PDSRGD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 2980568

Kennametal

EDPT140412PDSRGD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 2980568

MFR# 2980568ISO/ANSI# EDPT140412PDSRGDCat# EDPT140412PDSRGDSeries EDPT

$31.84List $38.19 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 2980568 is a EDPT140412PDSRGD solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeEP1412SGD
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityMill 1-14
Cutting edge styleChamfered; Honed
Hole diameter0.1339
Included angle degree70
Inscribed circle0.3288
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code1412
Insert styleEDPT
Iso codeEDPT140412PDSRGD
Length0.6882
Length range0.6500 to 0.7000
Manufacturers catalog numberEDPT140412PDSRGD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1770
Thickness range0.1750 to 0.1850
Width0.3290
