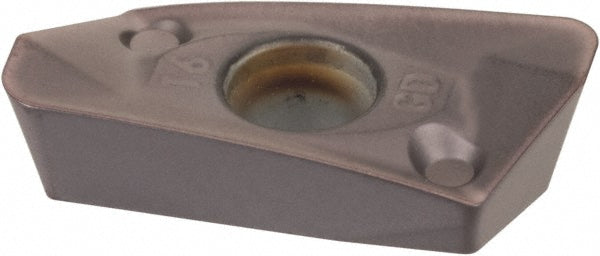

EDPT140416PDSRGD Solid Carbide Insert, Grade KC520M, TiAlN - Kennametal 2982090

Kennametal

EDPT140416PDSRGD Solid Carbide Insert, Grade KC520M, TiAlN - Kennametal 2982090

MFR# 2982090ISO/ANSI# EDPT140416PDSRGDCat# EDPT140416PDSRGDSeries EDPT

$29.29List $35.75 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeKC520M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 2982090 is a EDPT140416PDSRGD solid carbide indexable insert, grade KC520M, TiAlN coated. Suited for cast iron.

Specifications

Ansi codeEP1416SGD
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutter series compatibilityMill 1-14
Cutting edge styleChamfered; Honed
Hole diameter0.1339
Included angle degree70
Inscribed circle0.3287
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code1416
Insert styleEDPT
Iso codeEDPT140416PDSRGD
Length0.6884
Length range0.6500 to 0.7000
Manufacturers catalog numberEDPT140416PDSRGD
Manufacturer gradeKC520M
Material applicationCast Iron
Material gradeC1; C2
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1770
Thickness range0.1750 to 0.1850
Width0.3290
