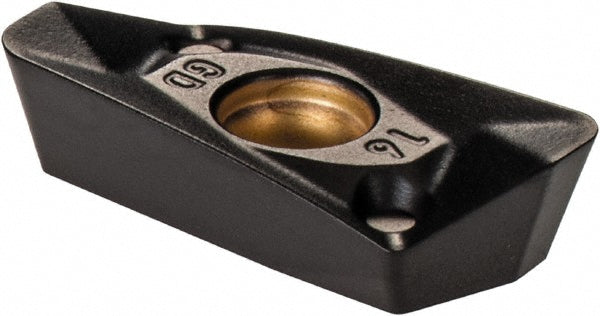

EDPT140416PDSRGD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2982091
MFR# 2982091ISO/ANSI# EDPT140416PDSRGDCat# EDPT140416PDSRGDSeries EDPT
$28.01List $34.19
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 2982091 is a EDPT140416PDSRGD solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeEP1416SGD
Chip breakerGD
Coating finishTiN
Coating processCVD
Corner radius in1/16
Cutter series compatibilityMill 1-14
Cutting edge styleChamfered; Honed
Hole diameter0.1339
Included angle degree70
Inscribed circle0.3287
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code1416
Insert styleEDPT
Iso codeEDPT140416PDSRGD
Length0.6884
Length range0.6500 to 0.7000
Manufacturers catalog numberEDPT140416PDSRGD
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1770
Thickness range0.1750 to 0.1850
Width0.3290
