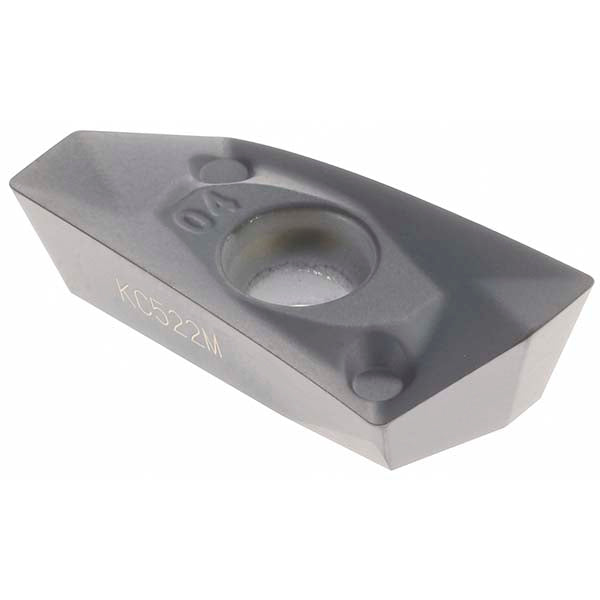

EDCT140404PDERLD Solid Carbide Insert, Grade KC522M, TiAlN - Kennametal 2984053
MFR# 2984053ISO/ANSI# EDCT140404PDERLDCat# EDCT140404PDERLDSeries EDCT
$29.72List $36.28
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC522M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 2984053 is a EDCT140404PDERLD solid carbide indexable insert, grade KC522M, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeEC1404ELD
Chip breakerLD
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityMill 1-14
Cutting edge styleHoned
Hole diameter0.1339
Included angle degree70
Inscribed circle0.3341
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code1404
Insert styleEDCT
Iso codeEDCT140404PDERLD
Length in11/16
Length range0.6500 to 0.7000
Manufacturers catalog numberEDCT140404PDERLD
Manufacturer gradeKC522M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1770
Thickness range0.1750 to 0.1850
Width0.3334
