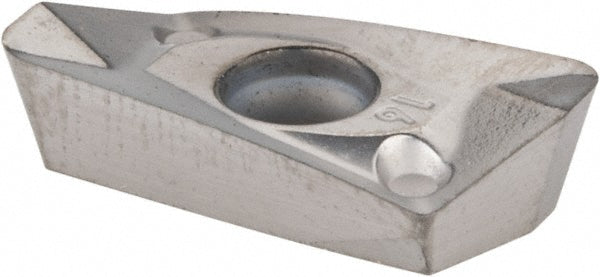

EDCT140416PDFRLDJ Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 2984360
MFR# 2984360ISO/ANSI# EDCT140416PDFRLDJCat# EDCT140416PDFRLDJSeries EDCT
$36.39List $43.64
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC410M
MaterialSolid Carbide
CoatingTiB2
Description
The Kennametal 2984360 is a EDCT140416PDFRLDJ solid carbide indexable insert, grade KC410M, TiB2 coated. Suited for non-ferrous metal.
Specifications
Ansi codeEC1416FLDJ
Chip breakerLD
Coating finishTiB2
Coating processPVD
Corner radius in1/16
Cutter series compatibilityMill 1-14
Cutting edge styleSharp
Hole diameter0.1339
Included angle degree70
Inscribed circle0.3327
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code1416
Insert styleEDCT
Iso codeEDCT140416PDFRLDJ
Length0.6886
Length range0.6500 to 0.7000
Manufacturers catalog numberEDCT140416PDFRLDJ
Manufacturer gradeKC410M
Material applicationNon-Ferrous Metal
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1770
Thickness range0.1750 to 0.1850
Width0.3330
