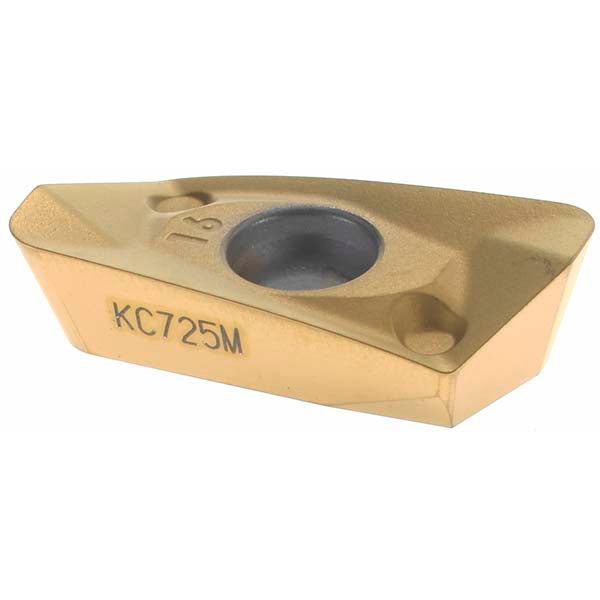

EDCT140416PDERGD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 2984773
MFR# 2984773ISO/ANSI# EDCT140416PDERGDCat# EDCT140416PDERGDSeries EDCT
$35.43List $42.50
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 2984773 is a EDCT140416PDERGD solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeEC1416EGD
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutter series compatibilityMill 1-14
Cutting edge styleHoned
Hole diameter0.1339
Included angle degree70
Inscribed circle0.3327
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code1416
Insert styleEDCT
Iso codeEDCT140416PDERGD
Length0.6886
Length range0.6500 to 0.7000
Manufacturers catalog numberEDCT140416PDERGD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1770
Thickness range0.1750 to 0.1850
Width0.3330
