Kennametal

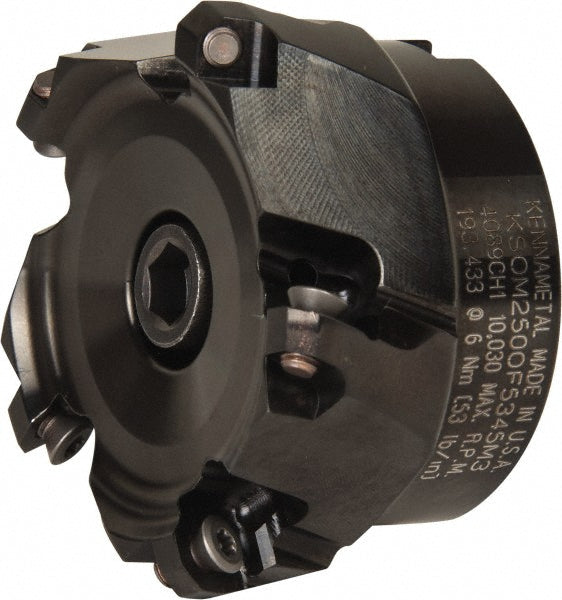

Indexable Milling Cutters - Kennametal 3093635
MFR# 3093635Series KSOM Mini
$616.29List $752.26
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Kennametal 3093635 indexable milling cutters. Series KSOM Mini.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeOF.T 06L5
Coolant throughNo
Cutting directionRight Hand
Hub diameter1.9860
Insert holding methodScrew
Keyway width0.3130
Maximum body diameter2.8460
Maximum cutting diameter2.8460
Maximum depth of cut0.1380
Maximum rpm10030
Minimum cutting diameter in2-1/2
Number of cutter inserts5
Number of flutes5
Overall height1.5700
Pitch typeMedium
