Kennametal
Indexable Milling Cutters - Kennametal 3093636
MFR# 3093636Series KSOM Mini
$836.45List $1,020.99
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description

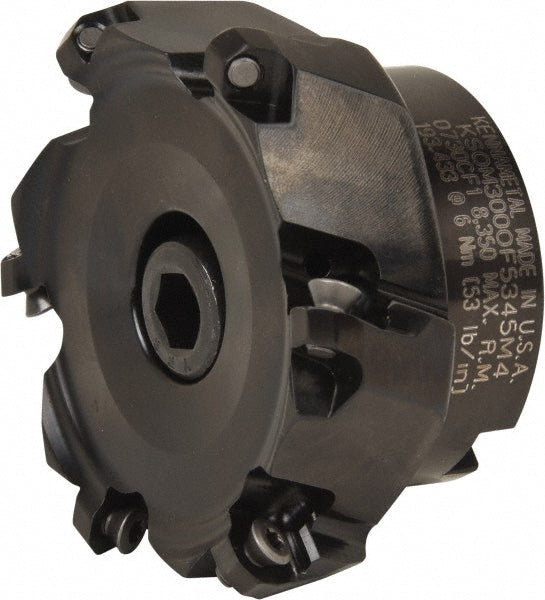

The Kennametal 3093636 indexable milling cutters. Series KSOM Mini.
Specifications
Arbor hole diameter in1
Compatible insert size codeOF.T 06L5
Coolant throughNo
Cutting directionRight Hand
Hub diameter2.0310
Insert holding methodScrew
Keyway width0.3750
Maximum body diameter3.3430
Maximum cutting diameter3.3430
Maximum depth of cut0.1380
Maximum rpm8350
Minimum cutting diameter in3
Number of cutter inserts6
Number of flutes6
Overall height in1-3/4
Pitch typeMedium
