Kennametal

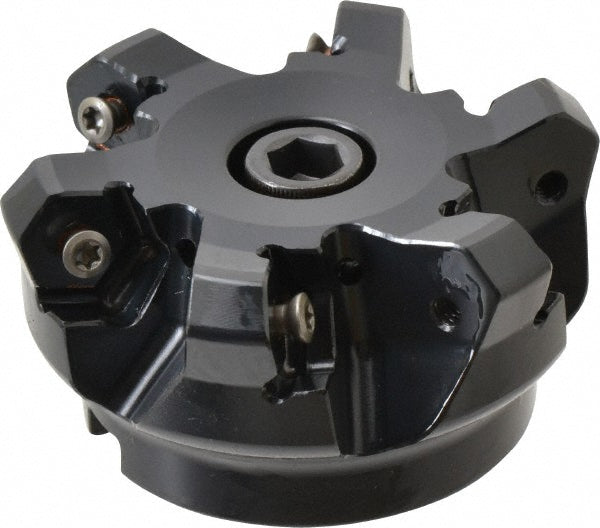

Indexable Milling Cutters - Kennametal 3326852
MFR# 3326852Series KSHR
$867.38List $1,058.75
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Kennametal 3326852 indexable milling cutters. Series KSHR.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeHNGJ 535-GD
Complete insert compatibilityHNGJ 535ANENLD; HNGJ 535ANSNGD
Coolant throughYes
Cutter styleKSHR
Cutting directionRight Hand
Hub diameter1.9860
Insert holding methodScrew
Maximum body diameter2.9330
Maximum cutting diameter2.9330
Maximum depth of cut0.1780
Maximum rpm10000
Minimum cutting diameter in2-1/2
Number of cutter inserts6
Number of flutes6
Overall height1.5700
Pitch typeCoarse
