Kennametal
Indexable Milling Cutters - Kennametal 3326926
MFR# 3326926Series KSHR
$1,292.99List $1,578.26
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes8
Description

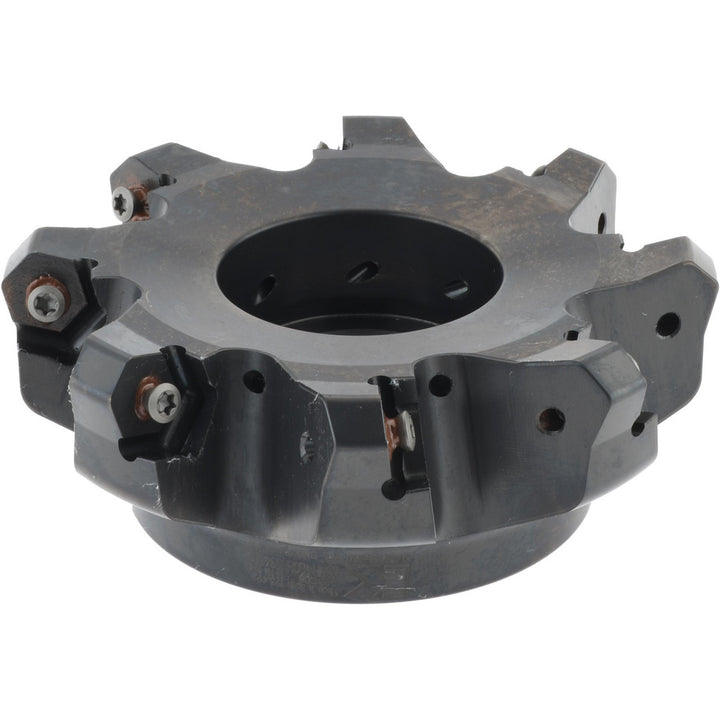

The Kennametal 3326926 indexable milling cutters. Series KSHR.
Specifications
Arbor hole diameter in1-1/4
Compatible insert size codeHNGJ 535-GD
Complete insert compatibilityHNGJ 535ANENLD; HNGJ 535ANSNGD
Coolant throughYes
Cutter styleKSHR
Cutting directionRight Hand
Hub diameter2.7220
Insert holding methodScrew
Maximum body diameter4.4320
Maximum cutting diameter4.4320
Maximum depth of cut0.1780
Maximum rpm6300
Minimum cutting diameter in4
Number of cutter inserts8
Number of flutes8
Overall height in1-3/4
Pitch typeCoarse
