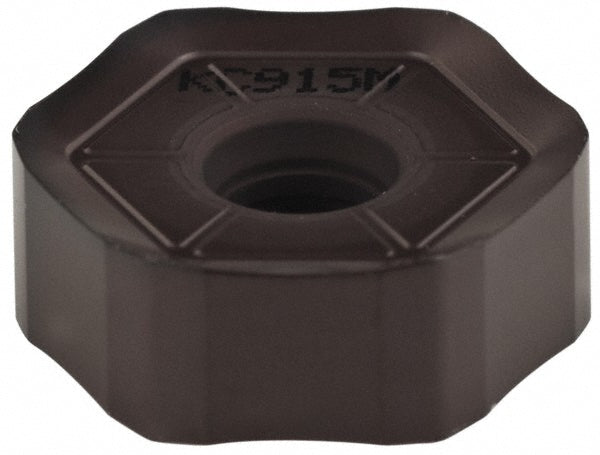

HNGJ0905ANENLD Solid Carbide Insert, Grade KCK15, TiN - Kennametal 3330952
MFR# 3330952ISO/ANSI# HNGJ0905ANENLDCat# HNGJ0905ANENLDSeries HNGJ
$56.74List $68.06
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeHexagon
GradeKCK15
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 3330952 is a HNGJ0905ANENLD solid carbide indexable insert, grade KCK15, TiN coated. Suited for cast iron.
Specifications
Ansi codeHNGJ535ANENLD
Chip breakerLD
Coating finishTiN
Coating processMTCVD
Corner radius in3/64
Cutter series compatibilityDodeka
Cutting edge styleHoned
Included angle degree120
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size5
Insert size code535
Insert styleHNGJ
Iso codeHNGJ0905ANENLD
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberHNGJ0905ANENLD
Manufacturer gradeKCK15
Material applicationCast Iron
Material gradeC1
Multi use toolYes
Number of cutting edges12
Primary workpiece materialCast Iron
RakeNegative
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in5/8
