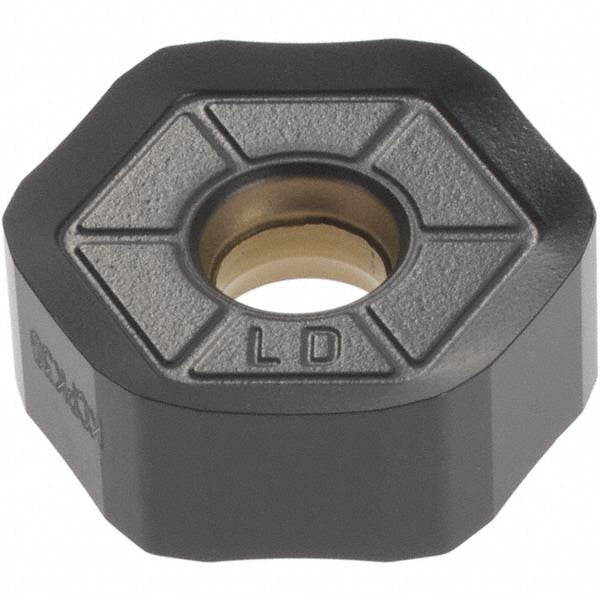

HNGJ0905ANENLD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 3331178

Kennametal

HNGJ0905ANENLD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 3331178

MFR# 3331178ISO/ANSI# HNGJ0905ANENLDCat# HNGJ0905ANENLDSeries HNGJ

$56.74List $68.06 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeHexagon
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 3331178 is a HNGJ0905ANENLD solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeHNGJ535ANENLD
Chip breakerLD
Coating finishTiN
Coating processCVD
Corner radius in3/64
Cutter series compatibilityDodeka
Cutting edge styleHoned
Included angle degree120
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size5
Insert size code535
Insert styleHNGJ
Iso codeHNGJ0905ANENLD
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberHNGJ0905ANENLD
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakeNegative
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in5/8
