Harvey Tool

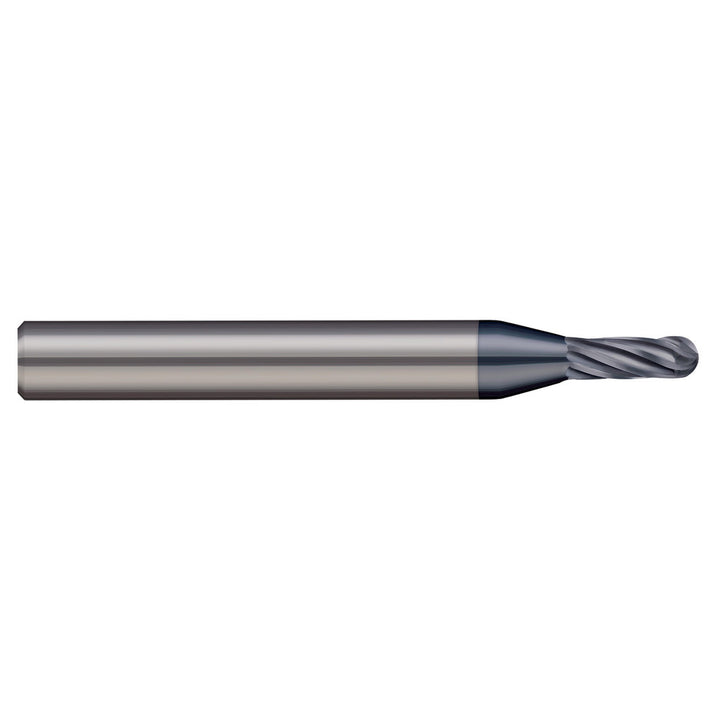

1/4" 6-Flute Solid Carbide Ball End Mill, AlTiN Nano - Harvey Tool 763516-C6
MFR# 763516-C6Series End Mills for Hardened Steels - Ball - For Steels 45-68 Rc, Material Specific End Mills
$78.30List $91.41
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes6
MaterialSolid Carbide
CoatingAlTiN Nano
Description
The Harvey Tool 763516-C6 is a 1/4 6-flute Solid Carbide (Carbide) ball end mill with a AlTiN Nano finish for longer tool life. Suited for hard material. 3/4 length of cut, 2-1/2 overall length. Series End Mills for Hardened Steels - Ball - For Steels 45-68 Rc, Material Specific End Mills.
Specifications
ChipbreakerNo
Coating finishAlTiN Nano
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle20
Helix styleVariable
Length of cut in3/4
Length typeStandard
Manufacturers catalog number763516-C6
Material gradeCarbide
Material removal typeRoughing
Mill diameter in1/4
Mill diameter tolerance+0.0000/-0.0020 in
Nose radius0.1250
Number of flutes6
Overall length in2-1/2
Primary workpiece materialHard Material
Reach length in3/4
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixYes
Variable indexNo
