SGS

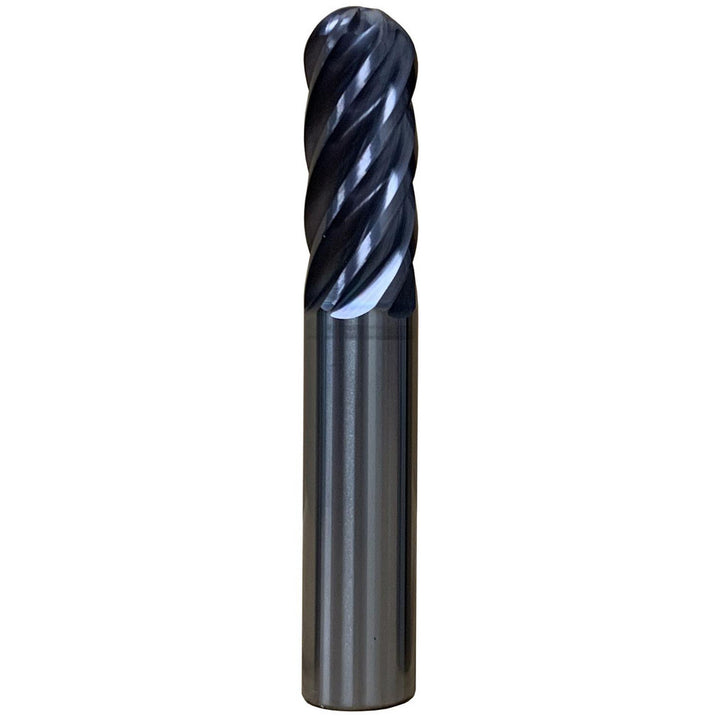

1/4" 6-Flute Solid Carbide Ball End Mill, Ti-NAMITE-X - SGS 35220

MFR# 35220Series 51B

$52.10List $66.82 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes6

MaterialSolid Carbide

CoatingTi-NAMITE-X

Description

The SGS 35220 is a 1/4 6-flute Solid Carbide (Micrograin) ball end mill with a Ti-NAMITE-X finish for longer tool life. 3/4 length of cut, 2-1/2 overall length. Series 51B.

Specifications

Coating finishTi-NAMITE-X

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Helix angle35 - 45

Helix styleHigh

Length of cut in3/4

Material gradeMicrograin

Mill diameter in1/4

Mill diameter tolerance+0.0000/-0.0016

Number of flutes6

Overall length in2-1/2

Shank diameter in1/4

Single or double endSingle

Variable helixNo

Variable indexYes
