Carbide Insert, Grade KCMS15, AlTiN - Kennametal 3381131

Kennametal

Carbide Insert, Grade KCMS15, AlTiN - Kennametal 3381131

MFR# 3381131Series KSEM

$186.10List $227.16 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeKCMS15
CoatingAlTiN

Description

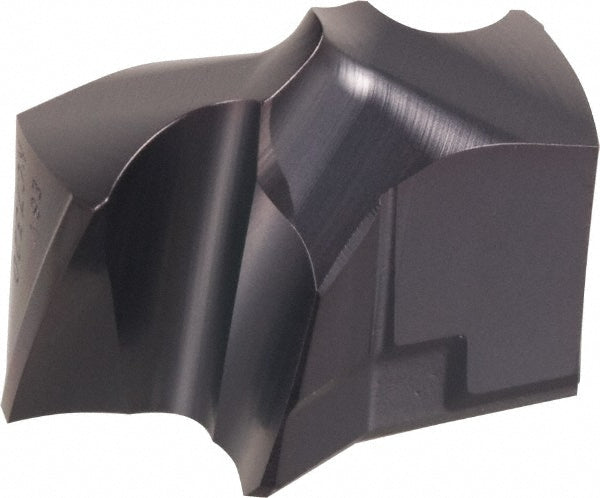

The Kennametal 3381131 is a carbide indexable insert, grade KCMS15, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsDrilling
Coating finishAlTiN
Coating processPVD
Coolant throughNo
Cutting diameter0.6693
DrillingStackedPlates
Drill point angle140
Flute length (mm)8.00
Flute typeHelical
Functional length0.3347
Height (mm)11.00
Included angle degree140
Insert geometryHPL
Insert holding methodClamp
Insert seat size1
Iso numberKSEM1700HPLM
Manufacturer gradeKCMS15
Material gradeFine Grain
Number of flutes2
Overall length projection0.4287
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKSEM
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
