Kennametal

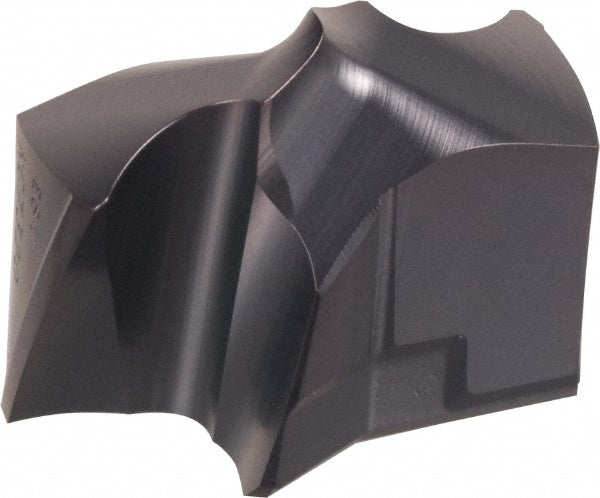

Carbide Insert, Grade KCMS15, AlTiN - Kennametal 3381640
MFR# 3381640Series KSEM
$294.19List $352.85
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKCMS15
CoatingAlTiN
Description
The Kennametal 3381640 is a carbide indexable insert, grade KCMS15, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.
Specifications
ApplicationsDrilling
Coating finishAlTiN
Coating processPVD
Coolant throughNo
Cutting diameter1.0630
DrillingStackedPlates
Drill point angle140
Flute length (mm)13.00
Flute typeHelical
Functional length0.5315
Height in17/32
Included angle degree140
Insert geometryHPL
Insert holding methodClamp
Insert seat size6
Iso numberKSEM2700HPLM
Manufacturer gradeKCMS15
Material gradeFine Grain
Number of flutes2
Overall length projection0.5315
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKSEM
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
