Kennametal

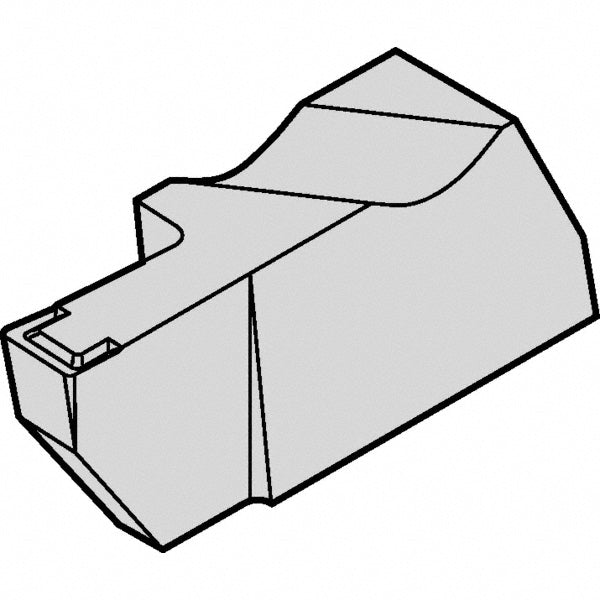

Carbide Insert, Grade KC5025, AlTiN - Kennametal 3397273
MFR# 3397273Series Top Notch
$25.50List $31.13
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3397273 is a carbide indexable insert, grade KC5025, AlTiN coated.
Specifications
Chip breakerK
Coating finishAlTiN
Coating processPVD
Corner radius0.0075
Cutting height0.2190
Cutting width0.0787
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert size2M200
Insert styleNGD
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.2000
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Multi use toolNo
Overall width0.151
