Kennametal

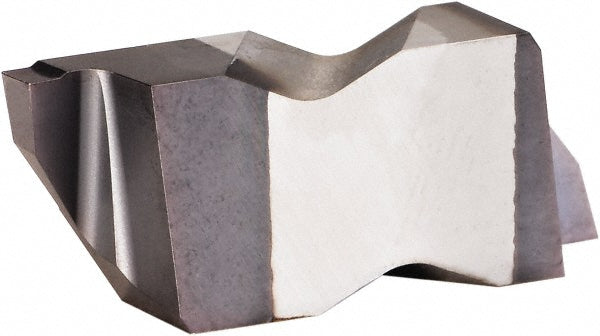

Carbide Insert, Grade KC5025, AlTiN - Kennametal 3397613
MFR# 3397613Series Top Notch
$44.17List $52.98
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 3397613 is a carbide indexable insert, grade KC5025, AlTiN coated.
Specifications
Chip breakerK
Coating finishAlTiN
Coating processPVD
Corner radius0.0075
Cutting height0.3440
Cutting width0.0787
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3M200
Insert styleNF
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.0700
Maximum depth of cut range0.0000 to 0.0750
Measurement typeMetric
Multi use toolNo
Overall width0.196
RakePositive
Rake angle12
