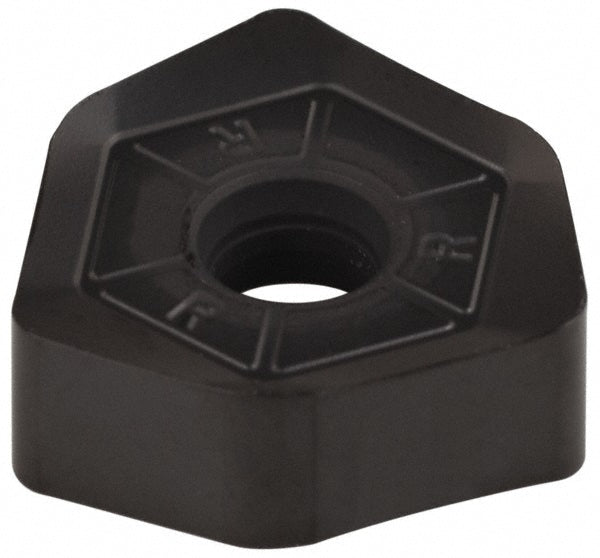

XNGJ0905ANSNGD3W Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 3547035

Kennametal

XNGJ0905ANSNGD3W Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 3547035

MFR# 3547035ISO/ANSI# XNGJ0905ANSNGD3WCat# XNGJ0905ANSNGD3WSeries XNGJ

$57.07List $68.46 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeTrigon
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 3547035 is a XNGJ0905ANSNGD3W solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeXNGJ535ANSNGD3W
Chip breakerGD
Coating finishTiN
Coating processCVD
Corner radius in1/16
Cutter series compatibilityDodeka
Cutting edge styleWiper
Included angle degree80
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size5
Insert size code535
Insert styleXNGJ
Iso codeXNGJ0905ANSNGD3W
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberXNGJ0905ANSNGD3W
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2170
Thickness range0.2000 to 0.2200
Width in5/8
