Kennametal

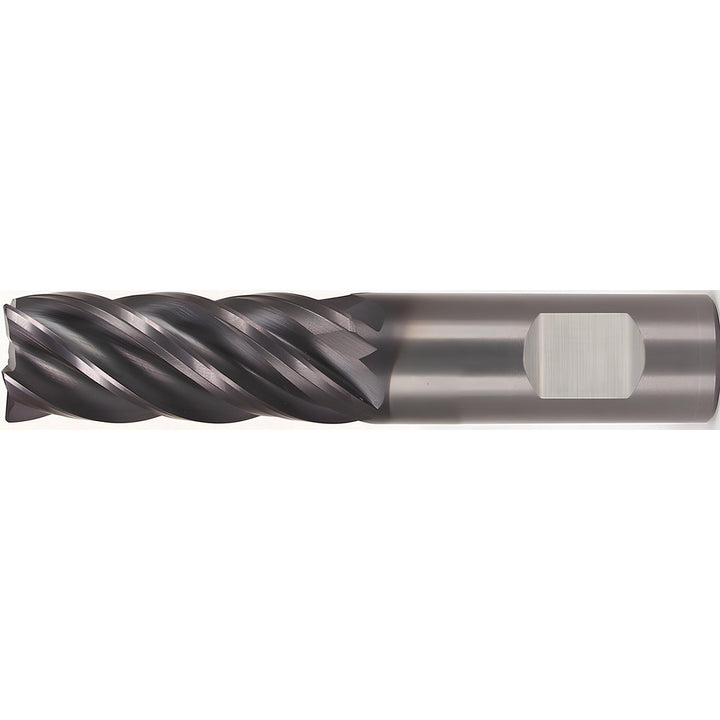

3/16" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 3580838

MFR# 3580838Series UCDE

$60.40List $77.47 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 3580838 is a 3/16 5-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 5/8 length of cut, 2-1/4 overall length. Series UCDE.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withER Single Angle Standard Collets

Helix styleHigh

Length of cut in5/8

Length typeLong

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in3/16

Mill diameter tolerance+0.000000/-0.002000 in

Number of flutes5

Overall length in2-1/4

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Shank diameter in3/16

Shank diameter tolerance+0.00000/-0.00031 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
