Kennametal

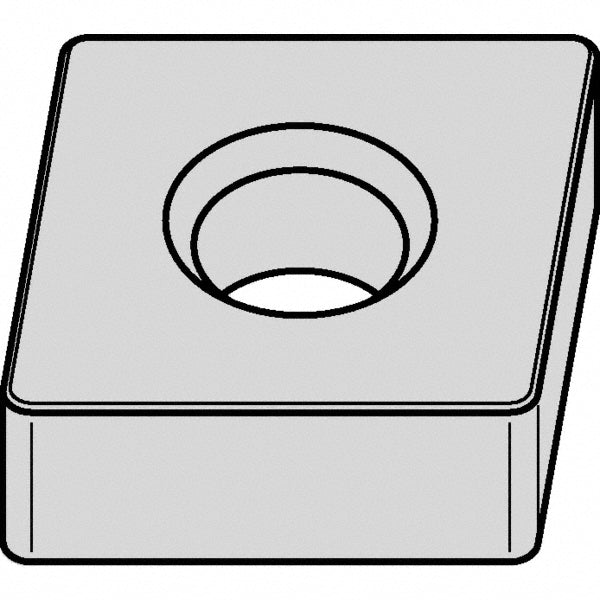

CNGA190612T02020 Whiskered Ceramic Insert, Grade KY4300 - Kennametal 3608047
MFR# 3608047ISO/ANSI# CNGA643T0820Series KENLOC
$50.09List $59.03
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond 80
GradeKY4300
MaterialWhiskered Ceramic
Description
The Kennametal 3608047 is a CNGA190612T02020 whiskered ceramic indexable insert, grade KY4300. Suited for superalloys & titanium.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating processUncoated
Corner radius in3/64
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.3125
Included angle80degree
Industry standard numberCNGA643T0820
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7616
Insert materialWhiskered Ceramic
Insert shapeDiamond 80
Insert size code643
Insert styleCNGA
Insert thickness in1/4
Iso codeCNGA190612T02020
Length range0.7000 - 10.0000
Manufacturers catalog number3608047
Manufacturer gradeKY4300
Material gradeAlumina SiC
Maximum depth of cut0.2536
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeG
Width in3/4in
Wiper edgeNo
