Kennametal

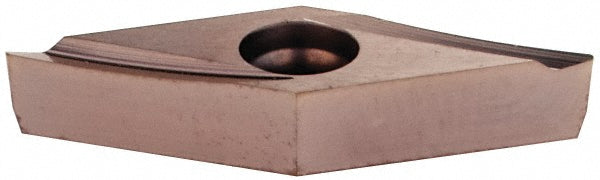

V - Diamond (Rhombic) 35-Deg 1/4" IC Carbide Insert, Grade KC5020P, TiCN - Kennametal 3630754
MFR# 3630754ISO/ANSI# VBGT110302Series Screw-On
$38.44List $46.11
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeKC5020P
MaterialCarbide
CoatingTiCN
Description
The Kennametal 3630754 is a carbide indexable insert, grade KC5020P, TiCN coated.
Specifications
Ansi insert codeVBGT2205
Ansi size code2205
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeB
Coating finishTiCN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1102
Included angle35
Industry standard numberVBGT2205RLF
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodScrew
Insert length0.8718
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code2205
Insert styleVBGT
Insert thickness in1/8
Iso insert codeVBGT110302
Iso size code110302
Length range0.7000 - 10.0000
Manufacturers catalog number3630754
Manufacturer gradeKC5020P
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
RakePositive
Rake angle5
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
