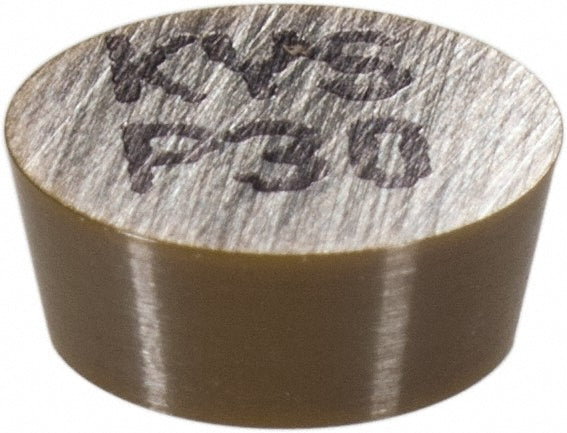

RPGN060200E Ceramic Insert, Grade KYSP30 - Kennametal 3636039

Kennametal

RPGN060200E Ceramic Insert, Grade KYSP30 - Kennametal 3636039

MFR# 3636039ISO/ANSI# RPGN060200ECat# RPGN060200ESeries RPGN

$25.82List $30.96 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeRound
GradeKYSP30
MaterialCeramic

Description

The Kennametal 3636039 is a RPGN060200E ceramic indexable insert, grade KYSP30. Suited for steel, superalloys & titanium.

Specifications

Ansi codeRPG2150E
Chip breakerFlat Top
Coating processUncoated
Cutter series compatibilityKIPR-RP
Cutting edge styleHoned
Included angle degree360
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialCeramic
Insert shapeRound
Insert size2
Insert size code21.50
Insert styleRPGN
Iso codeRPGN060200E
Length in1/4
Length range0.0000 to 0.3200
Manufacturers catalog numberRPGN060200E
Manufacturer gradeKYSP30
Material applicationSteel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Superalloys & Titanium
RakePositive
Rake angle20
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/32
Thickness range0.0000 to 0.1000
Width in1/4
