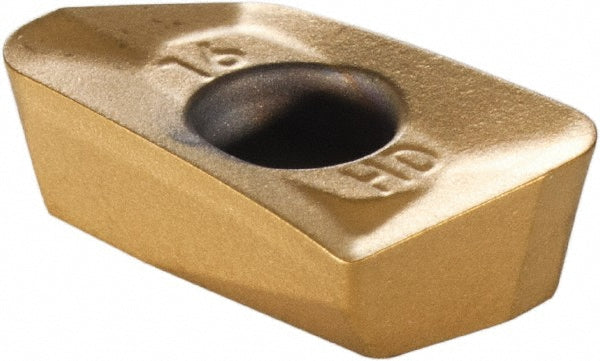

EDPT10T316PDERHD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 3642094
MFR# 3642094ISO/ANSI# EDPT10T316PDERHDCat# EDPT10T316PDERHDSeries EDPT
$30.12List $36.13
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 3642094 is a EDPT10T316PDERHD solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeEP1016EHD
Chip breakerHD
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutter series compatibilityMill 1-10
Cutting edge styleHoned
Included angle degree70
Inscribed circle0.2650
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T316
Insert styleEDPT
Iso codeEDPT10T316PDERHD
Length0.4750
Length range0.4500 to 0.5000
Manufacturers catalog numberEDPT10T316PDERHD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1476
Thickness range0.1250 to 0.1500
Width in17/64
