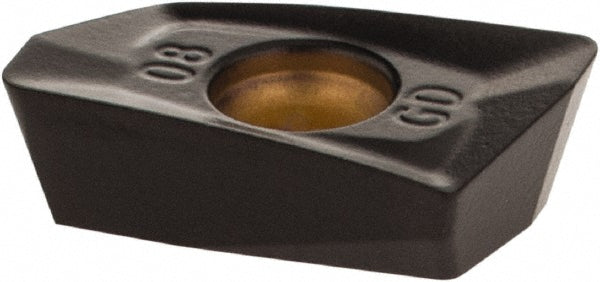

EDPT10T308PDSRGD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 3642172

Kennametal

EDPT10T308PDSRGD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 3642172

MFR# 3642172ISO/ANSI# EDPT10T308PDSRGDCat# EDPT10T308PDSRGDSeries EDPT

$31.37List $37.63 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 3642172 is a EDPT10T308PDSRGD solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeEP1008SGD
Chip breakerGD
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityMill 1-10
Cutting edge styleChamfered; Honed
Included angle degree70
Inscribed circle0.2650
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T308
Insert styleEDPT
Iso codeEDPT10T308PDSRGD
Length0.4740
Length range0.4500 to 0.5000
Manufacturers catalog numberEDPT10T308PDSRGD
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1476
Thickness range0.1250 to 0.1500
Width in17/64
