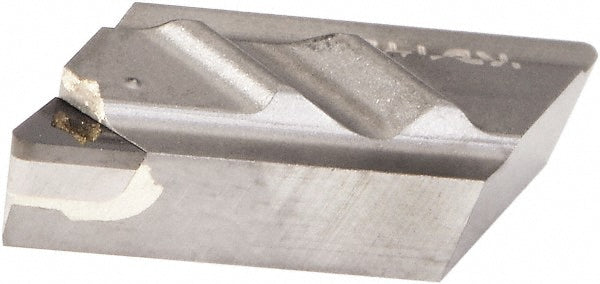

KCGX110304R15 Carbide Insert, Grade KD1425, PCD - Kennametal 3643854
MFR# 3643854ISO/ANSI# KCGX110304R15Series Top Not
$175.31List $210.26
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKD1425
MaterialCarbide
CoatingPCD
Description
The Kennametal 3643854 is a KCGX110304R15 carbide indexable insert, grade KD1425, PCD coated. Suited for non-ferrous metal.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishPCD
Coating processUncoated
Corner radius0.0156
Hole diameter0.0000
Included angle55
Inscribed circle0.2490
Insert handRight Hand
Insert height0.1250
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert size code51
Insert styleNPR
Iso codeKCGX110304R15
Manufacturer gradeKD1425
Material gradeN10; N20
Maximum depth of cut0.1256
Msc manufacturer numberNPR51
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Relief angle0
ShapeParallelogram
Side length0.3769
StandardsNPR51; KCGX110304R15
Thickness in1/8
Width in1/4
