Kennametal

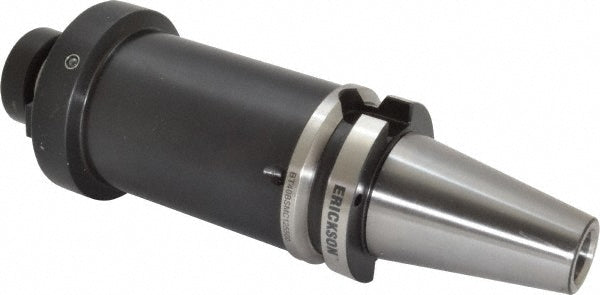

BT40 Shell Mill Holders, Adapter - Kennametal 3648670
MFR# 3648670
$217.76List $273.35
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 3648670 is a BT40 Shell Mill Holders, Adapter.
Specifications
Balanced to rpm12000
Coolant typeThrough-Spindle & DIN Flange
Lock screwKLS12
Lock screw thread size5/8-18
Nose diameter2.8800
Overall length8.2630
Pilot diameter in1-1/4
Projection flange to nose end5.0000
Shank typeTaper
Shell mill cutting diameter range in3 to 4
Taper sizeBT40
Through coolantYes
