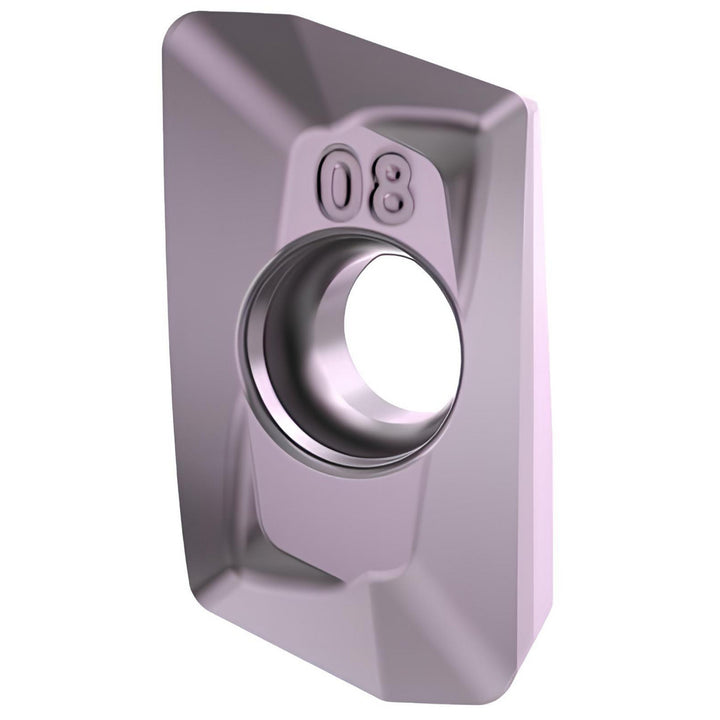

EDCT10T308PDERLD Solid Carbide Insert, Grade KC520M, TiAlN - Kennametal 3649189
MFR# 3649189ISO/ANSI# EDCT10T308PDERLDCat# EDCT10T308PDERLDSeries EDCT
$33.45List $40.12
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeKC520M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 3649189 is a EDCT10T308PDERLD solid carbide indexable insert, grade KC520M, TiAlN coated. Suited for cast iron.
Specifications
Ansi codeEC1008ELD
Chip breakerLD
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 1-10
Cutting edge styleHoned
Included angle degree70
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T308
Insert styleEDCT
Iso codeEDCT10T308PDERLD
Length0.4740
Length range0.4500 to 0.5000
Manufacturers catalog numberEDCT10T308PDERLD
Manufacturer gradeKC520M
Material applicationCast Iron
Material gradeC1; C2
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1480
Thickness range0.1250 to 0.1500
Width0.2650
