Kennametal

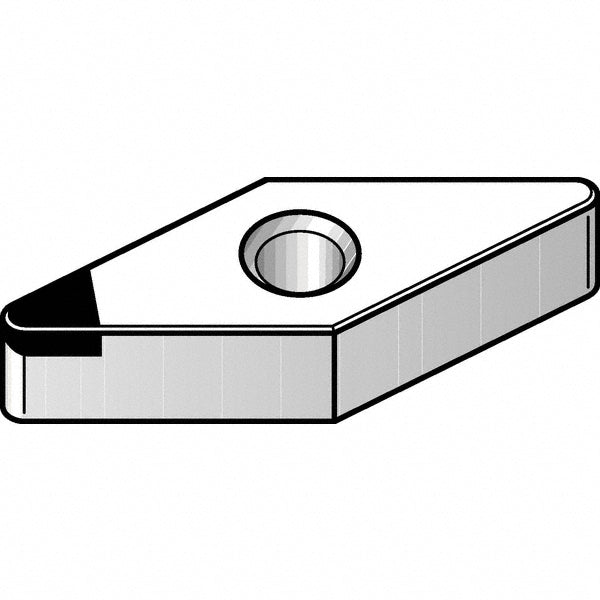

V - Diamond (Rhombic) 35-Deg 3/8" IC PCD Insert, Grade KD1400 - Kennametal 3656070
MFR# 3656070ISO/ANSI# VNGA160404Series KENLOC
$158.16List $189.69
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKD1400
MaterialPCD
Description
The Kennametal 3656070 is a pcd indexable insert, grade KD1400. Suited for non-ferrous metal.
Specifications
Ansi insert codeVNGA331
Ansi size code331
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance
Hole diameter0.1500
Included angle35
Industry standard numberVNGA331FST
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3080
Insert materialPCD
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNGA
Insert thickness in3/16
Iso insert codeVNGA160404
Iso size code160404
Length range0.7000 - 10.0000
Manufacturers catalog number3656070
Manufacturer gradeKD1400
Material gradeN05; N15
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
