Kennametal

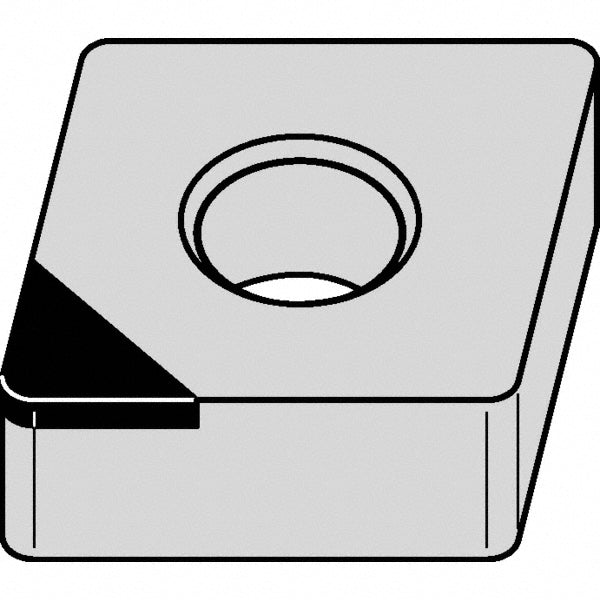

C - Diamond (Rhombic) 80-Deg 1/2" IC PCD Insert, Grade KD1425 - Kennametal 3656450
MFR# 3656450ISO/ANSI# CNGA120408Series KENLOC
$158.16List $189.69
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKD1425
MaterialPCD
Description
The Kennametal 3656450 is a pcd indexable insert, grade KD1425. Suited for non-ferrous metal.
Specifications
Ansi insert codeCNGA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Industry standard numberCNGA432FST
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialPCD
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso insert codeCNGA120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number3656450
Manufacturer gradeKD1425
Material gradeN05; N10
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
